Low-Dust Filling Station for Tissue Trim Waste

This stationary filling solution enables low-dust conveying and collection of tissue trim waste using a cutting fan and an air volume flow of 1,100 Nm³/h. Separation of air and conveyed material is achieved via a cyclone separator. The material falls directly into a 1000-liter container, which is manually docked and precisely aligned using integrated positioning guides.

A lid with a laminated safety glass viewing window allows visual monitoring of the fill level. Integrated venting areas equipped with antistatic filters ensure a dust-free environment. The connection between the lid and the cyclone is made via an antistatic compensator that absorbs movement and minimizes electrostatic charge.

A downstream antistatic filter captures fine dust and light residual material. The generously sized filter area keeps system backpressure low. A dust collection box mounted at the filter outlet can be easily removed and vacuumed for cleaning.

This system provides an efficient, safe, and clean method for filling electrostatically charged lightweight materials into existing container systems.

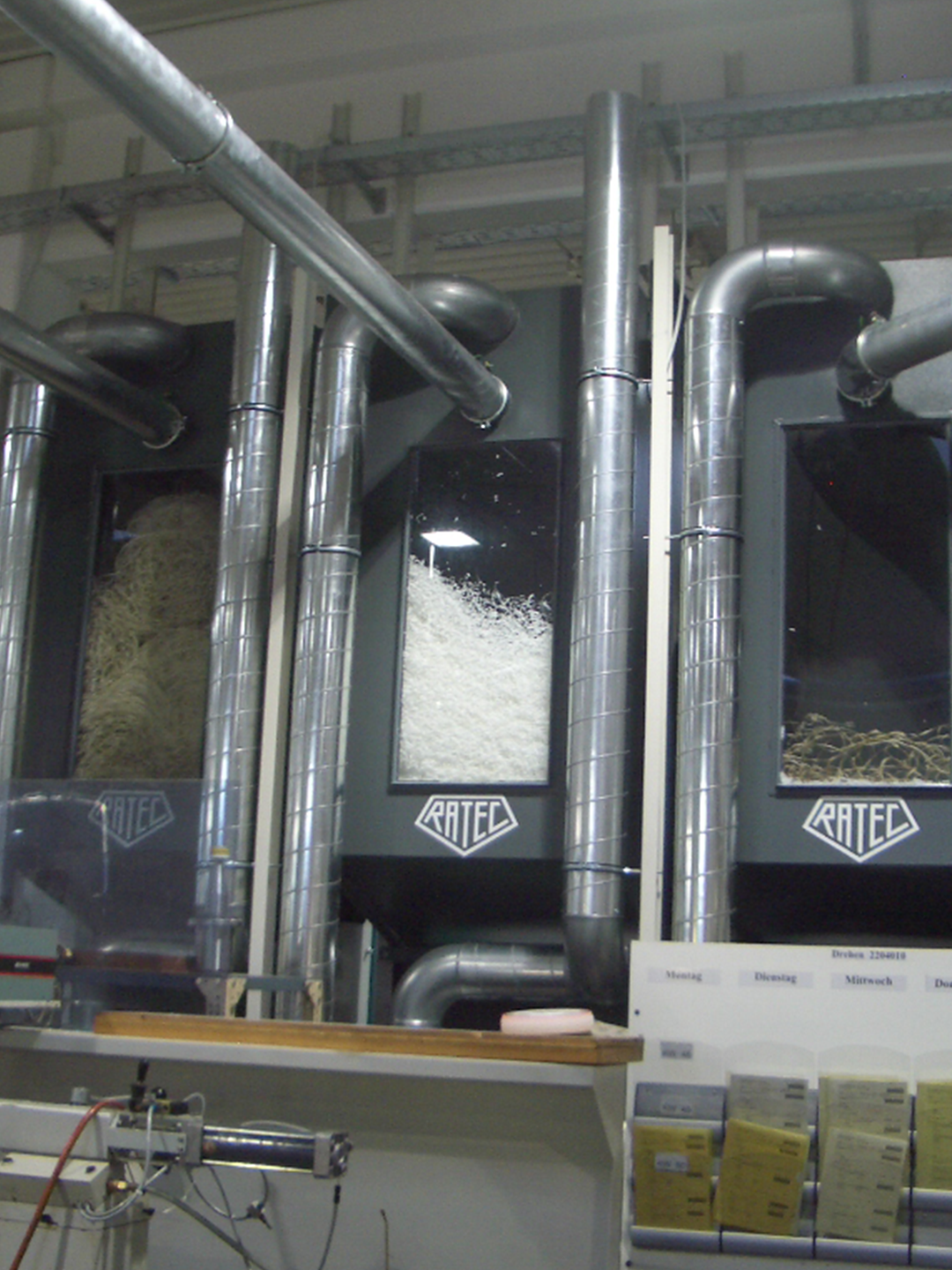

The stationary extraction system consists of a high-performance extraction fan and three separate separation containers, enabling the efficient suction and separation of continuous plastic chips generated by lathes.

The chips are captured directly at the cutting point between workpiece and tool and are collected separately by machine type into individual containers. Each separator is equipped with large viewing windows to allow continuous monitoring of the fill level. When the container is opened, the plastic chips fall directly into an on-site baling press, where they can be compacted into pallet-sized bales and strapped for further handling.

Special attention was given to the dissipation of static electricity during the design phase. All components are conductively interconnected, and large grounding lugs have been provided for integration into the site’s main grounding system.

Our cartridge filter units are high-performance components designed for the extraction and filtration of laser smoke, welding fumes, and dry dust. The filter cartridge is housed in a robust enclosure, available in various sizes and configurations to suit specific application requirements.

Thanks to their compact design and efficient filtration technology, these units are ideal for use at workstations, on machinery, or within smaller extraction systems. Depending on the application, different filter media are available to ensure reliable separation and clean air management.

The laser fume filter unit with integrated precoating tank is specifically designed for the filtration of fine, adhesive, or oil-laden particles commonly generated during laser cutting processes. This robust filtration system combines a high-performance cartridge filter with a precoating system that preconditions the filter media, effectively preventing clogging and significantly extending service life.

The system features a compact, fully enclosed housing and can be flexibly connected to laser machines or extraction systems. The precisely controlled dosing of the precoating agent ensures an even protective layer on the filter media, maintaining consistently high separation efficiency even under demanding operating conditions.

This unit is ideally suited for applications involving fine laser dust, metallic aerosols, and challenging particle mixtures—providing reliable air purification with minimal maintenance requirements.

Our HEPA/ULPA filter units are specifically designed for applications with the highest purity requirements, such as pharmaceutical, laboratory, or electronics manufacturing environments. They reliably filter out even the finest particles and aerosols from the air, ensuring controlled and clean working conditions.

The filter units consist of a robust housing and, depending on the application, incorporate various integrated HEPA or ULPA filter elements. Thanks to their compact design, they can be easily integrated into existing extraction systems and customized to meet specific customer requirements.

Our cyclone filters are high-performance components designed for the separation of coarse and fine dust in industrial extraction systems. They utilize the cyclone effect for efficient pre-separation of particles before the air is further purified by downstream filter units.

The robust steel housing, flow-optimized design, and application-specific geometry make the cyclone filter a durable and low-maintenance solution—ideal for dust-intensive processes in bulk material handling, metal processing, or waste management.

The units are available in various sizes and configurations and can be precisely adapted to your process requirements.

Our pre-separators provide the ideal solution for reliably removing coarse and medium fractions from the airflow before the main filtration stage. Serving as the first cleaning step in extraction systems, they relieve downstream filter elements such as cartridge or HEPA filters, significantly extending their service life and reducing maintenance efforts.

Depending on the application, various designs are available, including gravity separators and cyclone pre-separators. The housings are robustly constructed and designed for continuous industrial use—even under high dust loads.

Our pre-separators can be flexibly integrated into existing systems and customized to air volumes, dust types, and structural conditions. This ensures reliable contribution to the efficiency and durability of your extraction technology.

Our central vacuum systems provide a powerful and efficient solution for dust extraction in large industrial facilities. They are designed to supply multiple extraction points simultaneously while maintaining consistently high performance and filtration efficiency.

With a central system, dust sources from various areas such as production halls, workshops, or assembly lines are connected via a network of piping. The system enables centralized control and monitoring, resulting in simplified maintenance and reduced operational costs. Thanks to their robust construction and customization to your specific requirements, our central vacuum systems offer a durable and reliable solution.

Our systems are flexible and can be equipped with various filtration stages as needed — ranging from simple pre-separators to high-performance cartridge or HEPA filters — ensuring the safe removal of even the finest dust particles.

This extraction table offers a stable and ergonomic work surface with integrated extraction and filter technology for clean and safe working. The height-adjustable table surface with a grid top and rear wall extraction ensures effective capture of dust and dirt. Side-mounted filter cartridges of class “M” ensure high filtration efficiency, while automatic, pneumatic filter cleaning is controlled by a microprocessor. Lighting and generous legroom complete the comfortable workstation.
